Vertical layout

BrowseName: ColumnLayout
SuperType: Container (Container)
TypeView path: Tipi > UI > Contenitori > Disposizione verticale

Panel that automatically arranges the directly child graphical objects vertically next to each other.

Applications

Typically used to create vertical push-button panels. Below is an example of a push-button panel with alignment set to center:

../../../_images/ref_ColumnLayout_ex02.png

Note

the horizontal positioning and distance between the buttons depend on the margins set on the same buttons.

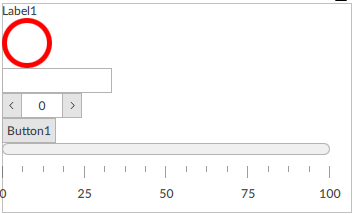

Also used in general to automatically align different graphic objects. Below is an example with child objects positioned by default, i.e. on the top left:

../../../_images/ref_ColumnLayout_ex01.png

Configuring the object

Set the order of the child objects

Arrange the child objects in the information model within the object in the desired order.

Set the position of the child objects

By default, child objects are anchored to the top and left sides. To position them differently, set alignment and any margins of the child objects.

Configure a vertical push-button panel

Below is the suggested approach to obtain a push-button panel with graphically consistent and easily editable buttons:

  1. Create a Button object type with alignment and margins already set.

  2. Create the type to create all buttons on the panel.

  3. Drag the buttons inside the Vertical arrangement object in the desired order.

Tip

to obtain buttons with the same height and that fit in relation to the available space, in the button type set the property Vertical alignment = Stretch.

Properties

Name

BrowseName

DataType

Description

Content alignment

ContentAlignment

ContentVerticalAlignment

Horizontal alignment of children. Left aligned = children are anchored to the left side, Center aligned = children are anchored to the center; Right aligned = children are anchored to the right side.

Visible

Visible

Boolean

Show/hide the window.
(Inherited from Element)
Enabled

Enabled

Boolean

Enables/disables the interaction with the user (True = enabled; False = disabled).
(Inherited from Element)
Opacity

Opacity

Float

Opacity level (0 = transparent)
(Inherited from Element)
Left margin

LeftMargin

Size

(Only if Horizontal Alignment = Left or Center or Stretch) Distance between the left edge of the object and the left edge of its container.
(Inherited from Element)
Top margin

TopMargin

Size

(Only if Vertical Alignment = Top or Center or Stretch) Distance between the top edge of the object and the top edge of its container.
(Inherited from Element)
Right margin

RightMargin

Size

(Only if Horizontal Alignment = Right or Center or Stretch) Distance between the right edge of the object and the right edge of its container.
(Inherited from Element)
Bottom margin

BottomMargin

Size

(Only if Vertical Alignment = Bottom or Center or Stretch) Distance between the bottom edge of the object and the bottom edge of its container.
(Inherited from Element)
Width

Width

Size

Width of the window. It can assume values greater than or equal to zero. The Auto value sets the width equal to the width of the content (in this case, in the absence of content the object collapses).
(Inherited from Element)
Height

Height

Size

Height of the window. It can assume values greater than or equal to zero. The Auto value sets the height equal to the height of the content (in this case, in the absence of content the object collapses).
(Inherited from Element)
Horizontal alignment

HorizontalAlignment

HorizontalAlignment

Alignment of the object on the horizontal axis. Left = the left side is positioned on the left side of the container, except for the left margin; Right = the right side is positioned on the right side of the container, except for the right margin; Center = the center of the object is positioned in the center of the container, except for the left and/or right margins; Stretch = object width equals container width, except for the left and/or right margins.
(Inherited from Element)
Vertical alignment

VerticalAlignment

VerticalAlignment

Alignment of the object on the vertical axis. Top = the top side is positioned on the top side of the container, except for the top margin; Bottom = the bottom side is positioned on the bottom side of the container, except for the bottom margin; Center = the center of the object is positioned in the center of the container, except for the top and/or bottom margins; Stretch = object height equals container height, except for the top and/or bottom margins.
(Inherited from Element)
Rotation

Rotation

Size

Rotation of the object around its center point. Positive values indicate clockwise arc degrees.
(Inherited from Element)
