Linear gauge¶

BrowseName: LinearGauge
SuperType: Element (Item)
TypeView path: Tipi > UI > Controlli base > Indicatore lineare

Set and/or display a whole number value within a range of possible values.

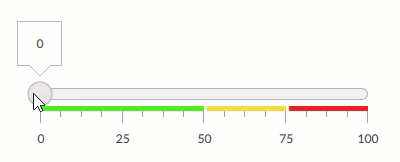

How It Appears

Applications

Typically used to set and/or display the value of an analog variable within a minimum and maximum value. Usually so-called warning zones are set to display specific ranges of values in different colors.

Properties¶

Name	BrowseName	DataType	Description
Value	Value	Float	Value displayed and possibly changed by the user
Minimum value	MinValue	Float	Minimum value displayed on the Y axis
Maximum value	MaxValue	Float	Maximum value displayed on the Y axis
Major tick count	MajorTickCount	Float	Quantity of main ranking signs
Minor tick count	MinorTickCount	Float	Quantity of secondary ranking signs
Label visible	LabelVisible	Boolean	Show/hide the scale values.
Editable	Editable	Boolean	Enable/disable the change of the value directly in the chart.
Scale padding	ScalePadding	Size
Value change behavior	ValueChangeBehaviour	ValueChangeBehaviour	Mode of updating text when the user writes in the text box. At end of typing = update the value after the user has pressed ENTER with either physical or virtual keyboard (pressing the ESC key or clicking outside the object, the previous text is restored); When typing = in real-time when writing.
Scale position	ScalePosition	PositionEnum	Position of the scale relative to the slider
Orientation	Orientation	OrientationEnum	Horizontal or vertical orientation of the object
Tooltip	Tooltip	Boolean	Show/hide the value above the selection point.
Warning zones	WarningZones	Collection of WarningZone	Ranges of values to display with a specific color.
Visible	Visible	Boolean	Show/hide the window. (Inherited from Element)
Enabled	Enabled	Boolean	Enables/disables the interaction with the user (True = enabled; False = disabled). (Inherited from Element)
Opacity	Opacity	Float	Opacity level (0 = transparent) (Inherited from Element)
Left margin	LeftMargin	Size	(Only if Horizontal Alignment = Left or Center or Stretch) Distance between the left edge of the object and the left edge of its container. (Inherited from Element)
Top margin	TopMargin	Size	(Only if Vertical Alignment = Top or Center or Stretch) Distance between the top edge of the object and the top edge of its container. (Inherited from Element)
Right margin	RightMargin	Size	(Only if Horizontal Alignment = Right or Center or Stretch) Distance between the right edge of the object and the right edge of its container. (Inherited from Element)
Bottom margin	BottomMargin	Size	(Only if Vertical Alignment = Bottom or Center or Stretch) Distance between the bottom edge of the object and the bottom edge of its container. (Inherited from Element)
Width	Width	Size	Width of the window. It can assume values greater than or equal to zero. The Auto value sets the width equal to the width of the content (in this case, in the absence of content the object collapses). (Inherited from Element)
Height	Height	Size	Height of the window. It can assume values greater than or equal to zero. The Auto value sets the height equal to the height of the content (in this case, in the absence of content the object collapses). (Inherited from Element)
Horizontal alignment	HorizontalAlignment	HorizontalAlignment	Alignment of the object on the horizontal axis. Left = the left side is positioned on the left side of the container, except for the left margin; Right = the right side is positioned on the right side of the container, except for the right margin; Center = the center of the object is positioned in the center of the container, except for the left and/or right margins; Stretch = object width equals container width, except for the left and/or right margins. (Inherited from Element)
Vertical alignment	VerticalAlignment	VerticalAlignment	Alignment of the object on the vertical axis. Top = the top side is positioned on the top side of the container, except for the top margin; Bottom = the bottom side is positioned on the bottom side of the container, except for the bottom margin; Center = the center of the object is positioned in the center of the container, except for the top and/or bottom margins; Stretch = object height equals container height, except for the top and/or bottom margins. (Inherited from Element)
Rotation	Rotation	Size	Rotation of the object around its center point. Positive values indicate clockwise arc degrees. (Inherited from Element)

Events¶

Modified value¶

BrowseName: UserValueChanged
